Home / Products / HEATING COOLING HVAC DHW / HVAC-R AND MEP MOTORISED VALVES

Clima diverting motorised valve – MMM connections

Technical data
Download
Description
Codice /
Code 		Tensione /
P. supply		Connessione /
Connection		DNKVsPNΔP
CLIMAPCDCB230 V
50/60 Hz		3/4"2011,51616
bar
CLIMAPCDCC230 V
50/60 Hz		1"2518,31616
bar
TECHNICAL DATASHEET

HEATING PLANTS WITH HEAT PUMP
Diverting valve for automatic switching between heat pump and boiler:

  • Automatic switching between HP and boiler according to outdoor temperature
  • Control of the diverting valve to the DHW heater
  • Data storage of the working time of HP and boiler

IP65 class protection

3-way brass ball valve, full bore, MMM PN 16

Modbus-RTU protocol for remote management

Clima diverting motorised valve – FFF connections

Technical data
Download
Description
Codice /
Code 		Tensione /
P. supply		Connessione /
Connection		DNKVsPNΔP
CLIMAPCDFA230 V
50/60 Hz		1/2"1562525
bar
CLIMAPCDFB230 V
50/60 Hz		3/4"2011,51616
bar
CLIMAPCDFC230 V
50/60 Hz		1"2518,31616
bar
CLIMAPCCFD230 V
50/60 Hz		1"1/43227,21010
bar
CLIMAPCCFE230 V
50/60 Hz		1"1/24047,3106
bar
CLIMAPCCFF230 V
50/60 Hz		2"5073104
bar
TECHNICAL DATASHEET

HEATING PLANTS WITH HEAT PUMP
Diverting valve for automatic switching between heat pump and boiler:

  • Automatic switching between HP and boiler according to outdoor temperature
  • Control of the diverting valve to the DHW heater
  • Data storage of the working time of HP and boiler

IP65 class protection

3-way brass ball valve, full bore, FFF PN 16

Modbus-RTU protocol for remote management

Modbus regulation control units for 3-point motorised valves

Technical data
Download
Description
Codice /
Code		Descrizione /
Description
CPSMB0Regolatore a punto fisso o con funzione climatica per alta/media temperatura
con ingresso proporzionale 0-10V e sonda temperatura /
Fixed-point or climate function regulator for high/medium temperature
with 0-10V proportional inlet and temperature probe
CPRMB0Regolatore a punto fisso o con funzione climatica per raffrescamento e riscaldamento
in bassa temperatura con sonda temperatura /
Fixed-point or climate function regulator for cooling and low
temperature heating with temperature probe
TECHNICAL DATASHEET - HIGH/MEDIUM TEMPERATURE UNITTECHNICAL DATASHEET - LOW TEMPERATURE UNIT

PID electronic controlled temperature regulators for 3-point modulating motorised valves with Modbus – RTU remote management

Fixed-point or climatic function

They can be matched with Comparato motorised valves with 3-point control and 230V power supply



6-WAY BALL VALVE

Technical data
Download
Description
Use
Codice / Code Connessione / ConnectionDNPNKVS
SC6A15F1/2" F15161,25
SC6B15M3/4" M15161,25
SC6A20F3/4" F20162,8
SC6A20F3/4" M20162,8
TECHNICAL DATASHEETFAST PUSH CONNECTION

Suggested application: 4-pipe plant



EXAMPLE OF USE

DIAMANT 2000 ISO motorised valve – VERTICAL 3 way FFF BRASS

Technical data
Download
Description
Use
Codice /
Code 		Misura /
Size		DNPNKVSTempi di manovra /
Operating times
Alimentazione 230V 50/60 Hz - SFERA 2 FORI /
Power supply 230V 50/60 Hz - 2-HOLE BALL
DY322GA2E51/2"1525670 sec (180°)
DY322GB2E53/4"201611,570 sec (180°)
DY322GC2E51"251618,370 sec (180°)
Alimentazione 24V 50/60 Hz - SFERA 2 FORI /
Power supply 24V 50/60 Hz - 2-HOLE BALL
DY342GA2E51/2"1525670 sec (180°)
DY342GB2E53/4"201611,570 sec (180°)
DY342GC2E51"251618,370 sec (180°)
TECHNICAL DATASHEETUSER'S MANUAL

HEATING / COOLING

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection

Class protection: IP65

Operating time: 35 sec for 90° rotation – 11Nm

3-way FFF BRASS ball valve with tangs, full bore PN16

EXAMPLE OF USE (ITA)

DIAMANT 2000 actuator

Technical data
Download
Description
Use
Codice /
Code 		Per corpo valvola /
For ball valve		VFrequenza /
Frequency		Coppia /
Torque		Tempi di manovra /
Operating times		Angolo ° /
Angle °
DY2222 - 3 VIE / WAY230V50/60 Hz11 Nm35 sec90°
DY2122 - 3 VIE / WAY110V50/60 Hz11 Nm35 sec90°
DY2422 - 3 VIE / WAY24V50/60 Hz11 Nm35 sec90°
DY3223 VIE / WAY230V50/60 Hz11 Nm70 sec180°
DY3123 VIE / WAY110V50/60 Hz11 Nm70 sec180°
DY3423 VIE / WAY24V50/60 Hz11 Nm70 sec180°
TECHNICAL DATASHEETUSER'S MANUAL

HEATING / COOLING

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection

Class protection: IP65

Operating time: 35 sec for 90° rotation – 11Nm

EXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

DIAMANT 2000 ISO actuator

Technical data
Download
Description
Use
Codice /
Code 		Per corpo valvola /
For ball valve		VFrequenza /
Frequency		Coppia /
Torque		Tempi di manovra /
Operating times		Angolo ° /
Angle °
DY222G2 - 3 VIE / WAY230V50/60 Hz11 Nm35 sec90°
DY212G2 - 3 VIE / WAY110V50/60 Hz11 Nm35 sec90°
DY242G2 - 3 VIE / WAY24V50/60 Hz11 Nm35 sec90°
DY322G3 VIE / WAY230V50/60 Hz11 Nm70 sec180°
DY312G3 VIE / WAY110V50/60 Hz11 Nm70 sec180°
DY342G3 VIE / WAY24V50/60 Hz11 Nm70 sec180°
TECHNICAL DATASHEETUSER'S MANUAL

HEATING / COOLING

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay control

Class protection: IP65

Operating time: 35 sec for 90° rotation – 11Nm

ISO 5211 connection to the ball valve

Accessories

EXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

ACCESSORIES DIAMANT 2000: FROM 4 TO 320 SECONDS VERSION

Technical data
Download
Add to the code of basic modelAccessories DescriptionNote
Q4 second version (5 Nm) 90°- 50 Hz

• 60 Hz on request		Not available with emergency manual override
To be combined with body valves Diamant 2000
D12 second version (5 Nm) 90°- 50 Hz

• 60 Hz on request		Not available with emergency manual override.
C8106 second version (11 Nm) 90°Not available with emergency manual override.
32320 second version (11 Nm) 90°Not available with emergency manual override.
TECHNICAL DATASHEETUSER'S MANUAL

ACCESSORIES DIAMANT 2000: EMERGENCY MANUAL OVERRIDE

Technical data
Download
Accessories DescriptionAdd to the code of basic model actuatorNote
Emergency manual overrideA4 sec. and 12 sec. versions not available
TECHNICAL DATASHEETUSER'S MANUAL

ACCESSORIES DIAMANT 2000: EXTRA MICRO-SWITCH

Technical data
Download
Accessories DescriptionAdd to the code of basic model actuator
1 extra micro-switch1
2 extra micro-switches2
TECHNICAL DATASHEETUSER'S MANUAL

2 way MM Sintesi ball valve with REGULATION DISC

Technical data
Download
Description
Codice / Code Misura / SizeDNPNKVS
SC2A2AK01/2"20161
SC2A2AK11/2"20161,6
SC2A2AK21/2"20162,5
SC2A2AK41/2"20164
SC2A2AK61/2"20166,3
TECHNICAL DATASHEETUSER'S MANUALFAST PUSH CONNECTION

2-way MM BRASS with caps and tangs

With regulation disc (Kvs)

Full bore PN16

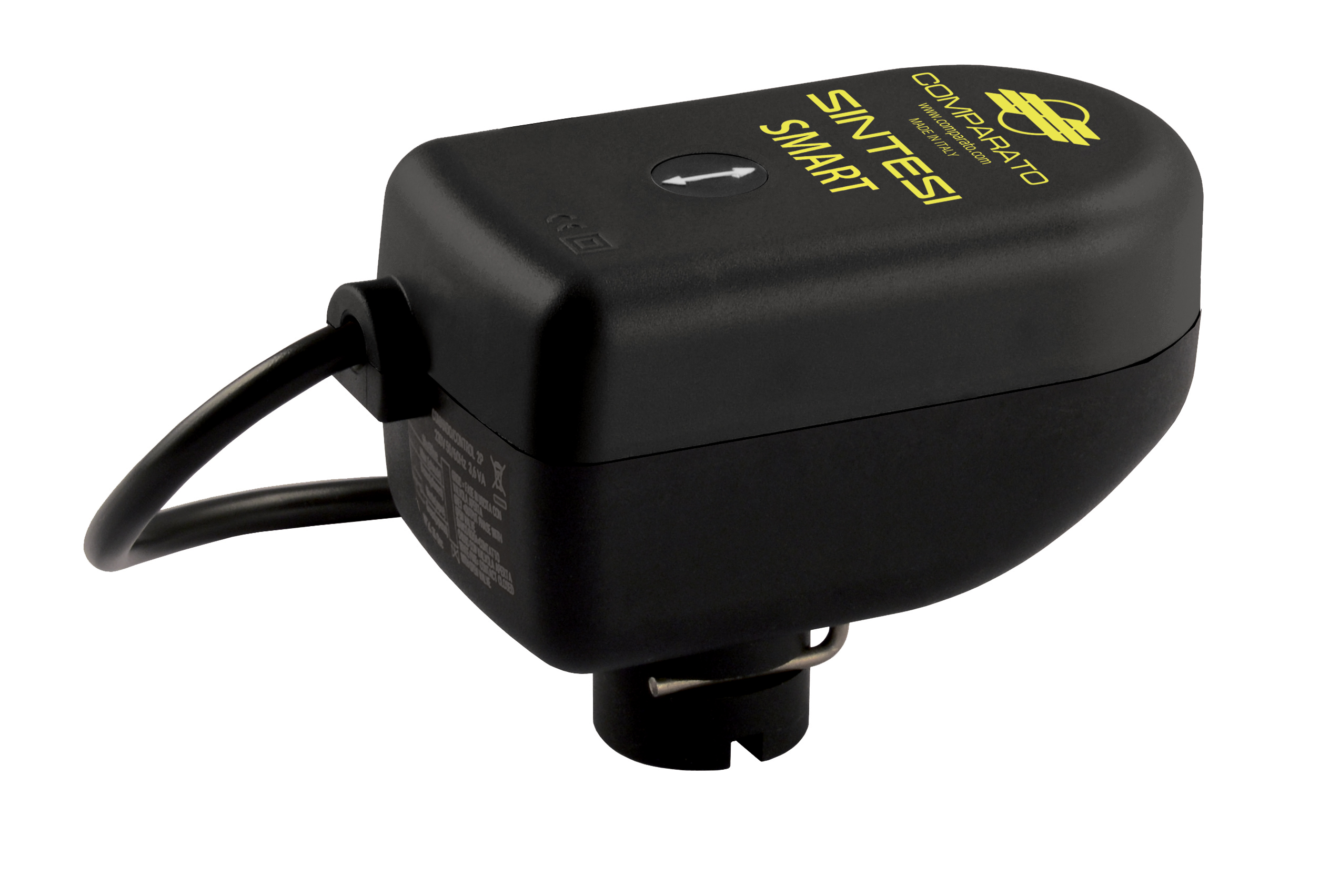

SINTESI SMART actuator – MODBUS communication

Technical data
Download
Description
Codice /
Code 		Alimentazione /
Electrical supply		Protocollo di comunicazione /
Communication protocol		Coppia /
Torque
SMmodbus24V AC/DCModbus8 Nm
TECHNICAL DATASHEETUSER'S MANUALFAST PUSH CONNECTION

New Comparato actuator with proportional control in tension or in current for modern heating and cooling plants.

Thanks to its peculiarities, it meets need of precise, reliable and long lasting regulation and, thanks to its “smart” heart, it can be used in all applications needing a flow mixing or partialization.

SINTESI SMART IS M-BUS CONTROLLED IN NEW GENERATION DOMOTIC SYSTEMS.

2 way FF BRASS Sintesi ball valve – EQUAL PERCENTAGE

Technical data
Download
Description
Codice / Code Connessione / ConnectionDNΔp maxKVS
SC2ARKVA1/2"153,4 bar0,25
SC2ARKVB1/2"153,4 bar0,4
SC2ARKVC1/2"153,4 bar0,63
SC2ARKVD1/2"153,4 bar1
SC2ARKVE1/2"153,4 bar1,6
SC2ARKVF1/2"153,4 bar2,5
SC2ARKVG1/2"153,4 bar4
SC2ARKVH1/2"153,4 bar6,3
SC2BRKVG3/4"203,4 bar4
SC2BRKVH3/4"203,4 bar6,3
SC2BRKVI3/4"203,4 bar8,6
SC2BRKVJ3/4"203,4 bar10
SC2CRKVH1"253,4 bar6,3
SC2CRKVJ1"253,4 bar10
SC2CRKVK1"253,4 bar16
SC2DRKVJ1"1/4323,4 bar10
SC2DRKVK1"1/4323,4 bar16
SC2DRKVL1"1/4323,4 bar25
SC2ERKVK1"1/2403,4 bar16
SC2ERKVL1"1/2403,4 bar25
SC2FRKVL2"503,4 bar25
SC2FRKVM2"503,4 bar25
TECHNICAL DATASHEETFAST PUSH CONNECTION

3-way FFF BRASS

Equal percentage PN16

3 way FFF BRASS Sintesi ball valve – EQUAL PERCENTAGE

Technical data
Download
Description
Codice / Code Connessione / ConnectionDNΔp maxKVS
SC3ARKVA1/2"153,4 bar0,25
SC3ARKVB1/2"153,4 bar0,4
SC3ARKVC1/2"153,4 bar0,63
SC3ARKVD1/2"153,4 bar1
SC3ARKVE1/2"153,4 bar1,6
SC3ARKVF1/2"153,4 bar2,5
SC3ARKVG1/2"153,4 bar4
SC3ARKVH1/2"153,4 bar6,3
SC3BRKVG3/4"203,4 bar4
SC3BRKVH3/4"203,4 bar6,3
SC3BRKVJ3/4"203,4 bar10
SC3CRKVH1"253,4 bar6,3
SC3CRKVJ1"253,4 bar10
SC3CRKVK1"253,4 bar16
SC3DRKVJ1"1/4323,4 bar10
SC3DRKVK1"1/4323,4 bar16
SC3DRKVL1"1/4323,4 bar25
SC3ERKVK1"1/2403,4 bar16
SC3ERKVL1"1/2403,4 bar25
SC3FRKVL2"503,4 bar25
SC3FRKVM2"503,4 bar25
TECHNICAL DATASHEETFAST PUSH CONNECTION

3-way FFF BRASS

Equal percentage PN16

2 way MM BRASS Sintesi ball valve

Technical data
Download
Description
Codice / Code Misura / SizeDNPNKVS
SC2A2A1/2"151616,3
SC2B2A3/4"201629,5
SC2C2A1"251643
TECHNICAL DATASHEETUSER'S MANUALFAST PUSH CONNECTION

2-way MM BRASS with caps and tangs

Full bore PN16

DIAMANT 2000 motorised valve – 2 way MM BRASS

Technical data
Download
Description
Use
Codice /
Code 		VMisura /
Size		DNPNKVSTempi di manovra /
Operating times
DY222A2A230 V
50/60 Hz		1/2"151616,335 sec (90°)
DY222B2A230 V
50/60 Hz		3/4"201629,535 sec (90°)
DY222C2A230 V
50/60 Hz		1"25164335 sec (90°)
TECHNICAL DATASHEET - ACTUATORTECHNICAL DATASHEET - VALVEUSER'S MANUAL

HEATING / COOLING

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection

Class protection: IP65

Operating time: 35 sec for 90° rotation – 11Nm

2-way MM BRASS ball valve with tags, full bore PN16

EXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

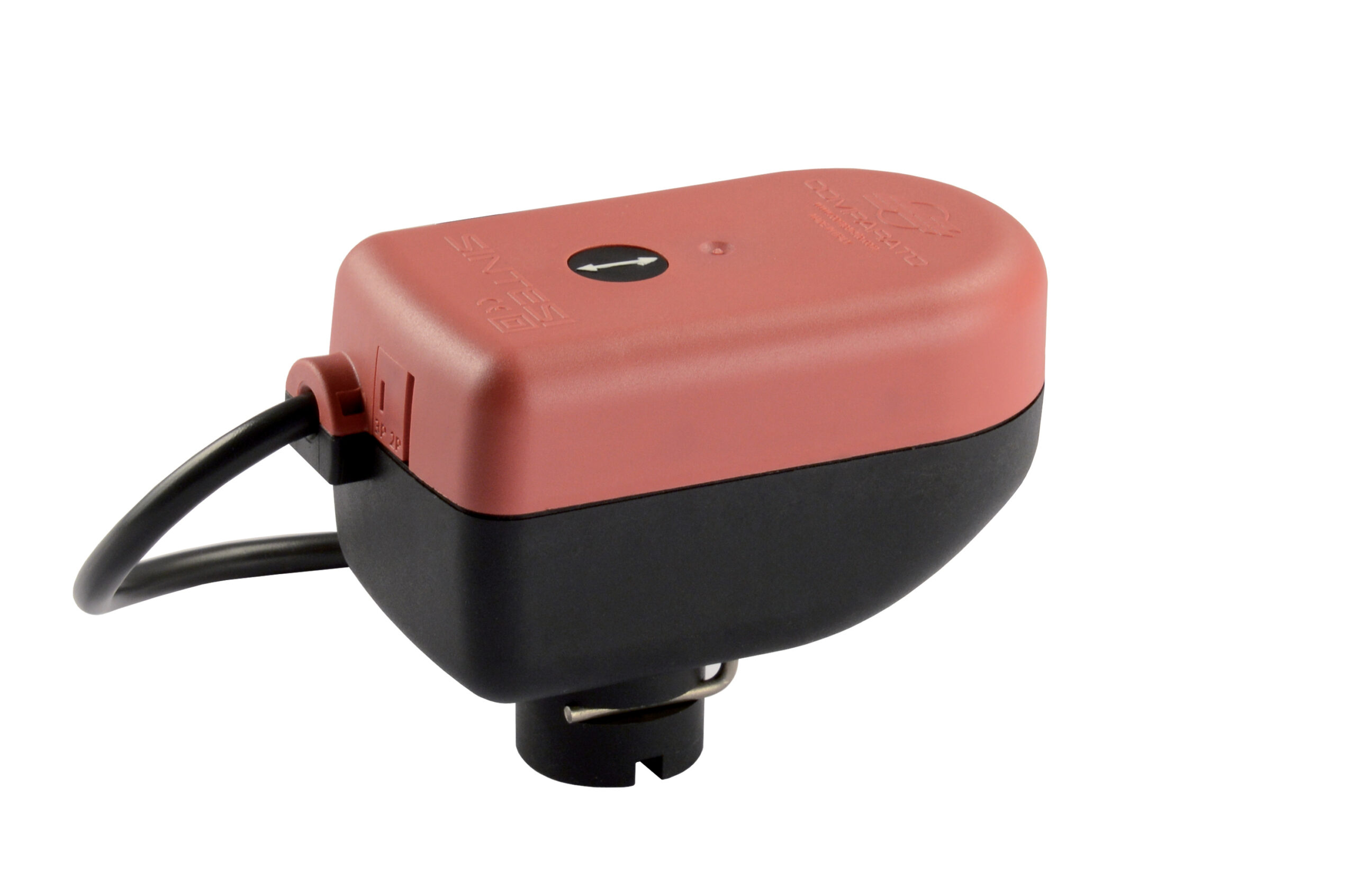

SINTESI ACTUATOR – FAST BIDIRECTIONAL 3-POINT MODULATING

Technical data
Download
Description
Use
Codice /
Code 		Per corpo valvola /
For ball valve		VFrequenza /
Frequency		Coppia /
Torque		Tempi di manovra /
Operating times
SS2221BA2 VIE / 3 VIE / BY-PASS
2-WAY / 3-WAY / BY-PASS		230V50/60 Hz5 Nm15 sec (90°)
SS2421BA2 VIE / 3 VIE / BY-PASS
2-WAY / 3-WAY / BY-PASS		24V50/60 Hz5 Nm15 sec (90°)
TECHNICAL DATASHEETUSER'S MANUALFAST PUSH CONNECTION

HEATING / COOLING / SANITARY WATER

MODULATING functioning, with 1 extra free micro switch on opening

3 points control actuator without relay

Class protection: IP54

Operating time: 15 sec for 90° rotation – 5Nm

EXAMPLE OF USE (ITA) - HEATING PLANTEXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

SINTESI actuator – BIDIRECTIONAL 3 POINTS ON/OFF OR MODULATING

Technical data
Download
Description
Use
Codice /
Code 		Per corpo valvola /
For ball valve		VFrequenza /
Frequency		Coppia /
Torque		Tempi di manovra /
Operating times
SS2221B2 VIE / 3 VIE / BY-PASS
2-WAY / 3-WAY / BY-PASS		230V50/60 Hz8 Nm35 sec (90°)
SS2421B2 VIE / 3 VIE / BY-PASS
2-WAY / 3-WAY / BY-PASS		24V50/60 Hz8 Nm35 sec (90°)
TECHNICAL DATASHEETUSER'S MANUALFAST PUSH CONNECTION

HEATING / COOLING / SANITARY WATER

MODULATING functioning, with 1 extra free micro switch on opening

3 points control actuator without relay

Class protection: IP54

Operating time: 35 sec for 90° rotation – 8Nm

EXAMPLE OF USE (ITA) - HEATING PLANTEXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

MICRODIAM Actuator – 2 points

Technical data
Download
Description
Codice /
Code		VFrequenza /
Frequency		Coppia /
Torque		Tempi di manovra /
Operating times		Comando /
Control
MS222N230V50/60 Hz5 Nm48 sec (90°)2 punti /
2 points
MS242N24V50/60 Hz5 Nm48 sec (90°)2 punti /
2 points
TECHNICAL DATASHEETUSER'S MANUAL

HEATING / COOLING

2 points control actuator, with 1 extra free micro switch on opening

Class protection: IP44

Operating time: 48 sec for 90° rotation – 5Nm

Fast push connection

DIAMANT 2000 ISO motorised valve – 2 way FF BRASS with full bore

Technical data
Download
Description
Use
Codice /
Code 		Misura /
Size		DNPNKVSTempi di manovra /
Operating times
Alimentazione 230V 50/60 Hz /
Power supply 230V 50/60 Hz
DY222GS2P51/4"-405,435 sec (90°)
DY222GR2P53/8"1040635 sec (90°)
DY222GA2P51/2"154016,335 sec (90°)
DY222GB2P53/4"204029,535 sec (90°)
DY222GC2P51"25404335 sec (90°)
DY222GD2P51" 1/432408935 sec (90°)
Alimentazione 24V 50/60 Hz /
Power supply 24V 50/60 Hz
DY242GS2P51/4"-405,435 sec (90°)
DY242GR2P53/8"1040635 sec (90°)
DY242GA2P51/2"154016,335 sec (90°)
DY242GB2P53/4"204029,535 sec (90°)
DY242GC2P51"25404335 sec (90°)
DY242GD2P51" 1/432408935 sec (90°)
TECHNICAL DATASHEETUSER'S MANUAL

HEATING / COOLING

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection

Class protection: IP65

Operating time: 35 sec for 90° rotation – 11Nm

2-way FF BRASS ball valve with tags, full bore PN40

EXAMPLE OF USE (ITA) - HEATING PLANT WITH MIXING VALVE

Related products
