Diamant PRO actuator – WINEMAKING
| Codice / Code | Per corpo valvola / For ball valve | V | Frequenza / Frequency | Coppia / Torque | Tempi di manovra / Operating times | Angolo ° / Angle ° |
|---|---|---|---|---|---|---|
| DY242P2R | 2 - 3 VIE / WAY | 24V | 50/60 Hz | 11 Nm | 35 sec | 90° |
| DY342P2R | 3 VIE / WAY | 24V | 50/60 Hz | 11 Nm | 70 sec | 180° |
USE: WINEMAKING INDUSTRY
Torque: 11 Nm
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 35 sec for 90° rotation
2 extra micro-switches
Internal heating resistance
2-way MM BRASS Diamant PRO ball valve with spacer, thermal break and manual override
| Codice / Code | Misura / Size | DN | PN |
|---|---|---|---|
| DC2A2AD9 | 1/2" | 15 | 16 |
| DC2B2AD9 | 3/4" | 20 | 16 |
| DC2C2AD9 | 1" | 25 | 16 |
2-way MM BRASS with caps and tangs
Full bore PN16
With spacer for insulation, thermal break and manual override, stainless steel components
2-way FF BRASS Diamant PRO ball valve with spacer, thermal break and manual override
| Codice / Code | Misura / Size | DN | PN |
|---|---|---|---|
| DC2S2P5D9 | 1/4" | - | 40 |
| DC2R2P5D9 | 3/8" | 10 | 40 |
| DC2A2P5D9 | 1/2" | 15 | 40 |
| DC2B2P5D9 | 3/4" | 20 | 40 |
| DC2C2P5D9 | 1" | 25 | 40 |
| DC2D2P5D9 | 1"1/4 * | 32 | 40 |
| * pressione differenziale massima 25 bar, per 40 bar vedere sezione Compact PRO * maximum differential pressure 25 bar, for 40 bar please see Compact PRO section |
2-way FF BRASS
Full bore PN40
With spacer for insulation, thermal break and manual override, stainless steel components

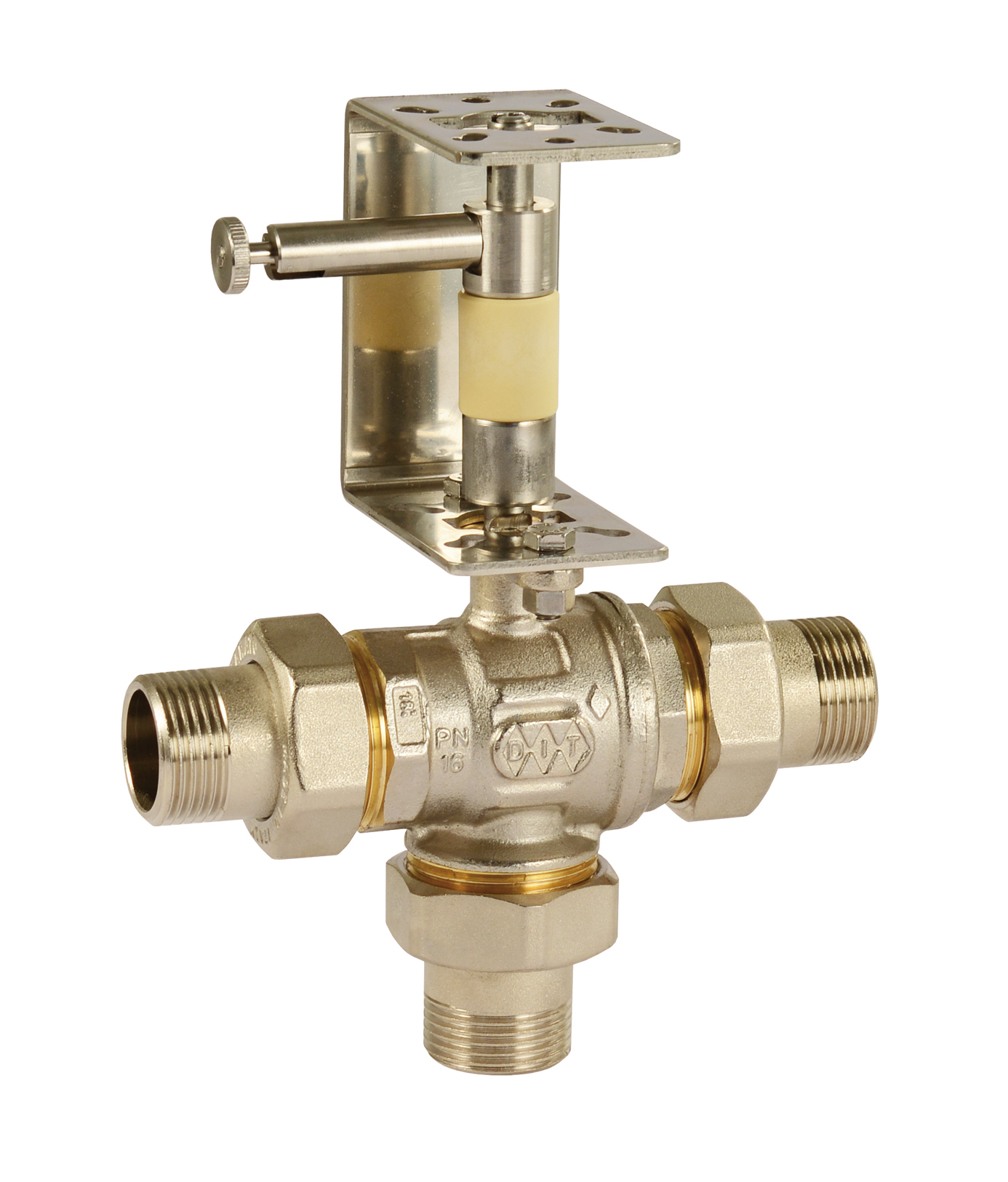

3 way MMM BRASS Diamant PRO ball valve with spacer, thermal break and manual override
| Codice / Code | Misura / Size | Angolo ° / Angle ° | DN | PN |
|---|---|---|---|---|
| SFERA 3 FORI | 3-HOLE BALL | |||
| DC3B3AD9 | 3/4" | 90° | 20 | 16 |
| DC3C3AD9 | 1" | 90° | 25 | 16 |
| SFERA 2 FORI | 2-HOLE BALL | |||
| DC3B2AD9 | 3/4" | 180° | 20 | 16 |
| DC3C2AD9 | 1" | 180° | 25 | 16 |
3-way MMM BRASS with caps and tangs
Full bore PN16
With spacer for insulation, thermal break and manual override, stainless steel components
3-way FFF BRASS vertical Diamant PRO ball valve with spacer, thermal break and manual override
| Codice / Code | Misura / Size | Angolo° / Angle° | DN | PN |
|---|---|---|---|---|
| SFREA 3 FORI | 3-HOLE BALL | |||
| DC3A3E5D9 | 1/2" | 90° | 15 | 25 |
| DC3B3E5D9 | 3/4" | 90° | 20 | 16 |
| DC3C3E5D9 | 1" * | 90° | 25 | 16 |
| SFREA 2 FORI | 2-HOLE BALL | |||
| DC3A2E5D9 | 1/2" | 180° | 15 | 25 |
| DC3B2E5D9 | 3/4" | 180° | 20 | 16 |
| DC3C2E5D9 | 1" * | 180° | 25 | 16 |
| * pressione differenziale massima 10 bar, per 16 bar vedere sezione Compact PRO * maximum differential pressure 10 bar, for 16 bar please see Compact PRO section |
3-way FFF BRASS VERTICAL
Full bore
With spacer for insulation, thermal break and manual override, stainless steel components
3-way FFF BRASS horizontal Diamant PRO ball valve with spacer, thermal break and manual override
| Codice / Code | Misura / Size | DN | PN |
|---|---|---|---|
| SFERA "T" / "T"-PORT | |||
| DC3A6E5D9 | 1/2" | 15 | 30 |
| DC3B6E5D9 | 3/4" * | 20 | 30 |
| SFERA "L" / "L"-PORT | |||
| DC3A5E5D9 | 1/2" | 15 | 30 |
| DC3B5E5D9 | 3/4" * | 20 | 30 |
| * pressione differenziale massima 16 bar, per 30 bar vedere sezione Compact PRO * maximum differential pressure 16 bar, for 30 bar please see Compact PRO section |
3-way FFF BRASS HORIZONTAL
Full bore PN30
With spacer for insulation, thermal break and manual override, stainless steel components
Compact PRO actuator – WINEMAKING
| Codice / Code | Per corpo valvola / For ball valve | V | Frequenza / Frequency | Coppia / Torque | Tempi di manovra / Operating times | Angolo ° / Angle ° |
|---|---|---|---|---|---|---|
| CY2422PSAR | 2 - 3 VIE / WAY | 24V | 50/60 Hz | 22 Nm | 45 sec | 90° |
| CY342PSAR | 3 VIE / WAY | 24V | 50/60 Hz | 22 Nm | 90 sec | 180° |
USE: WINEMAKING INDUSTRY
Torque: 22 Nm
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 45 sec for 90° rotation
2 extra micro-switches
Internal heating resistance
Universal PRO actuator – WINEMAKING
| Codice / Code | Per corpo valvola / For ball valve | V | Frequenza / Frequency | Coppia / Torque | Tempi di manovra / Operating times | Angolo ° / Angle ° |
|---|---|---|---|---|---|---|
| UY2422PSAR | 2 - 3 VIE / WAY | 24V | 50/60 Hz | 40 Nm | 55 sec | 90° |
| UY342PSAR | 3 VIE / WAY | 24V | 50/60 Hz | 40 Nm | 110 sec | 180° |
USE: WINEMAKING INDUSTRY
Torque: 40 Nm
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 55 sec for 90° rotation
2 extra micro-switches
Internal heating resistance

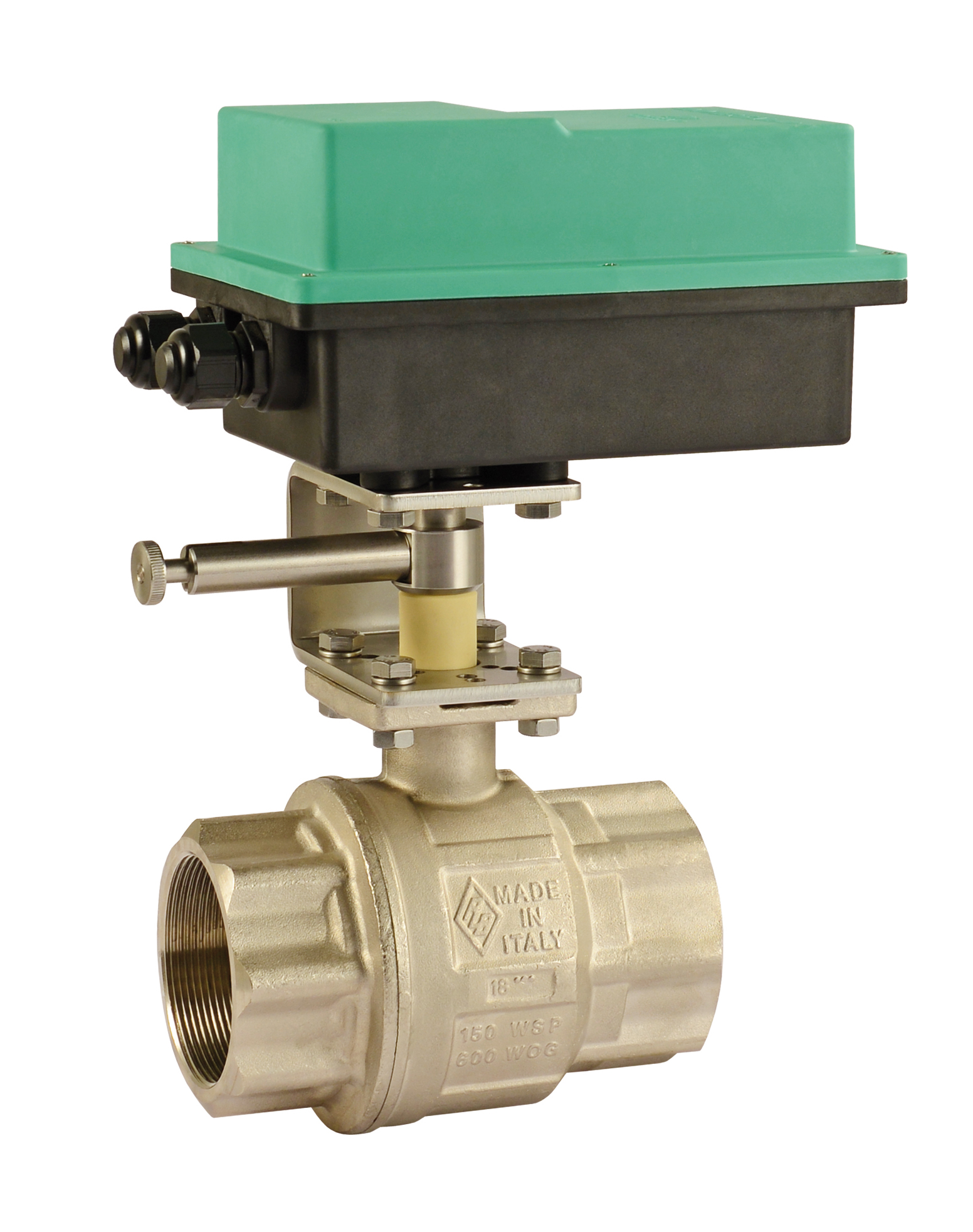

COMPACT PRO motorised valve – 2-way FF BRASS with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| CY242RD2M5D9 | 24 V 50/60 Hz | 1"1/4 | 32 | 40 | 45 sec (90°) |
| CY242RE2M5D9 | 24 V 50/60 Hz | 1"/1/2 | 40 | 40 | 45 sec (90°) |
| CY242RF2M5D9 | 24 V 50/60 Hz | 2" * | 50 | 40 | 45 sec (90°) |
| * pressione differenziale massima 25 bar, per 40 bar vedere sezione Universal PRO * maximum differential pressure 25 bar, for 40 bar please see Universal PRO section |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 45 sec for 90° rotation – 22Nm
Protected type, with spacer, thermal break and manual override, 2 extra microswitches
2-way FF BRASS ball valve, full bore PN40
UNIVERSAL PRO motorised valve – 2-way FF BRASS with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| UY242RF2M5D9 | 24 V 50 Hz | 2" | 50 | 40 | 55 sec (90°) |
| UY242RG2M5D9 | 24 V 50 Hz | 2"1/2 | 65 | 25 | 55 sec (90°) |
| UY242RH2M5D9 | 24 V 50 Hz | 3" | 80 | 16 | 55 sec (90°) |
| UY242RI2M5D9 | 24 V 50 Hz | 4" * | 100 | 16 | 55 sec (90°) |
| * pressione differenziale massima 6 bar, per valori superiori vedere sez. Universal * maximum differential pressure 6 bar, for further values please see Universal section |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 55 sec for 90° rotation – 40Nm
Protected type, with spacer, thermal break and manual override, 2 extra microswitches
2-way FF BRASS ball valve, full bore
COMPACT PRO motorised valve – 3-way FFF BRASS vertical with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| SFERA 3 FORI 90° | 3-HOLE BALL 90° | ||||
| CY242RC3E5D9 | 24 V 50/60 Hz | 1" | 25 | 16 | 45 sec |
| CY242RD3E5D9 | 24 V 50/60 Hz | 1"1/4 | 32 | 10 | 45 sec |
| CY242RE3E5D9 | 24 V 50/60 Hz | 1"1/2 * | 40 | 10 | 45 sec |
| SFERA 2 FORI 180° | 2-HOLE BALL 180° | ||||
| CY342RC2E5D9 | 24 V 50/60 Hz | 1" | 25 | 16 | 90 sec |
| CY342RD2E5D9 | 24 V 50/60 Hz | 1"1/4 | 32 | 10 | 90 sec |
| CY342RE2E5D9 | 24 V 50/60 Hz | 1"1/2 * | 40 | 10 | 90 sec |
| * pressione differenziale massima 6 bar, per 10 bar vedere sezione Universal PRO * maximum differential pressure 6 bar, for 10 bar please see Universal PRO section |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 45 sec for 90° rotation – 22Nm
Protected type, with spacer, thermal break and manual override, 2 extra micro switches
3-way FFF BRASS vertical ball valve, full bore
UNIVERSAL PRO motorised valve – 3-way FFF BRASS vertical with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| SFERA 3 FORI 90° | 3-HOLE BALL 90° | ||||
| UY242RE3E5D9 | 24 V 50 Hz | 1"1/2 | 40 | 10 | 55 sec |
| UY242RAF3E5D9 | 24 V 50 Hz | 2" | 50 | 10 | 55 sec |
| SFERA 2 FORI 180° | 2-HOLE BALL 180° | ||||
| UY342RE2E5D9 | 24 V 50 Hz | 1"1/2 | 40 | 10 | 110 sec |
| UY342RF2E5D9 | 24 V 50 Hz | 2" | 50 | 10 | 110 sec |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 55 sec for 90° rotation – 40Nm
Protected type, with spacer, thermal break and manual override, 2 extra micro switches
3-way FFF BRASS vertical ball valve, full bore PN10
COMPACT PRO motorised valve – 3 way FFF BRASS horizontal with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| SFERA "T" / "T"-PORT | |||||
| CY242RB6E5D9 | 24 V 50/60 Hz | 3/4" | 20 | 30 | 45 sec (90°) |
| CY242RC6E5D9 | 24 V 50/60 Hz | 1" | 25 | 16 | 45 sec (90°) |
| CY242RD6E5D9 | 24 V 50/60 Hz | 1"1/4 * | 32 | 10 | 45 sec (90°) |
| SFERA "L" / "L"-PORT | |||||
| CY242RB5E5D9 | 24 V 50/60 Hz | 3/4" | 20 | 30 | 45 sec (90°) |
| CY242RC5E5D9 | 24 V 50/60 Hz | 1" | 25 | 16 | 45 sec (90°) |
| CY242RD5E5D9 | 24 V 50/60 Hz | 1"1/4 * | 32 | 10 | 45 sec (90°) |
| * pressione differenziale massima 6 bar, per 10 bar vedere sezione Universal PRO * maximum differential pressure 6 bar, for 10 bar please see Universal PRO section |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 45 sec for 90° rotation – 22Nm
Protected type, with spacer, thermal break and manual override, 2 extra micro switches
3-way FFF BRASS horizontal ball valve, full bore
UNIVERSAL PRO motorised valve – 3-way FFF BRASS horizontal with spacer, thermal break and manual override
| Codice / Code | V | Misura / Size | DN | PN | Tempi di manovra / Operating times |
|---|---|---|---|---|---|
| SFERA "T" | "T"-PORT | ||||
| UY242RD6E5D9 | 24 V 50 Hz | 1"1/4 | 32 | 10 | 55 sec (90°) |
| UY242RE6E5D9 | 24 V 50 Hz | 1"1/2 | 40 | 10 | 55 sec (90°) |
| UY242RF6E5D9 | 24 V 50 Hz | 2" | 50 | 10 | 55 sec (90°) |
| SFERA "L" | "L"-PORT | ||||
| UY242RD5E5D9 | 24 V 50 Hz | 1"1/4 | 32 | 10 | 55 sec (90°) |
| UY242RE5E5D9 | 24 V 50 Hz | 1"1/2 | 40 | 10 | 55 sec (90°) |
| UY242RF5E5D9 | 24 V 50 Hz | 2" | 50 | 10 | 55 sec (90°) |
WINEMAKING
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 55 sec for 90° rotation – 40Nm
Protected type, with spacer, thermal break and manual override, 2 extra micro switches
3-way FFF BRASS horizontal ball valve, full bore PN10
