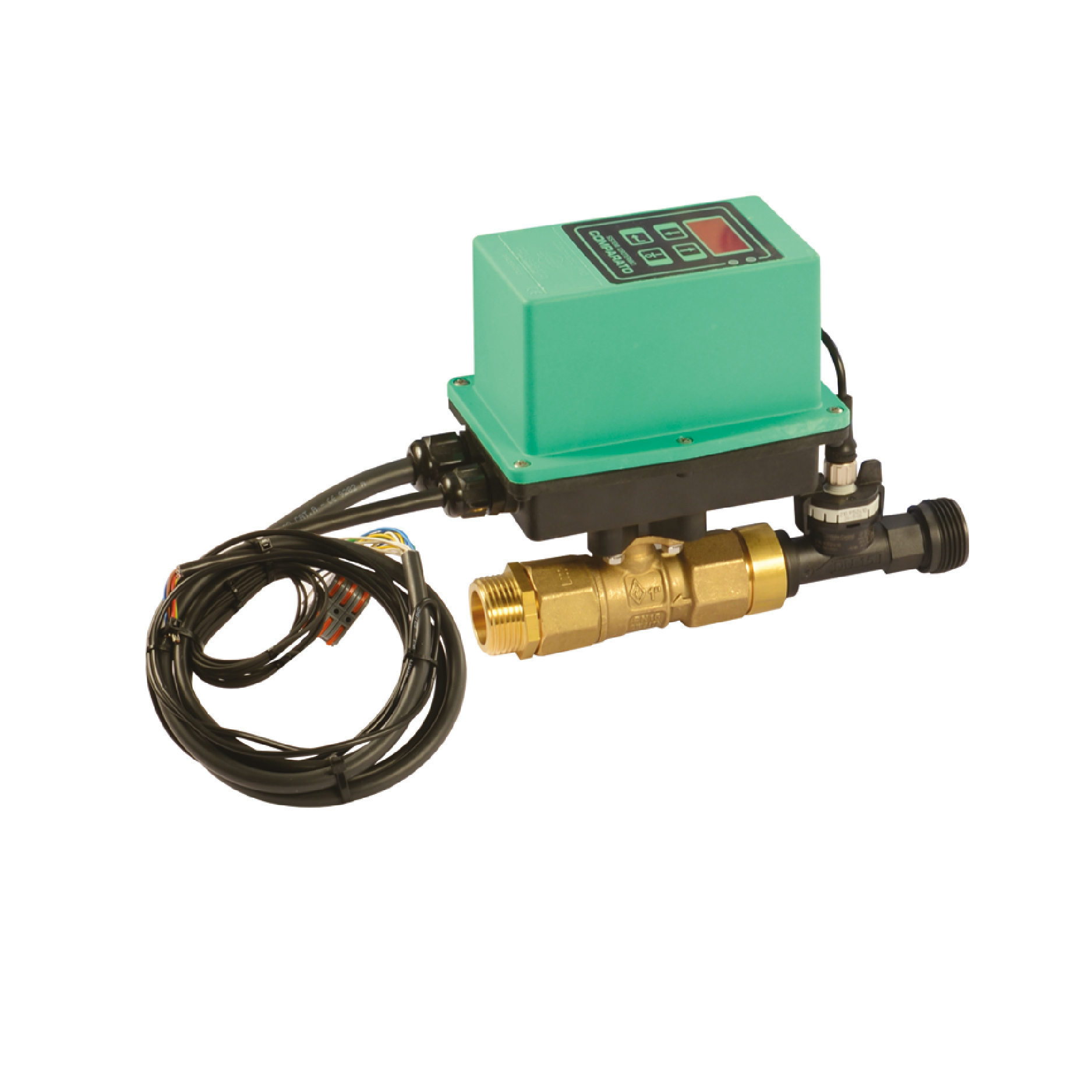

ePICV – electronic flow control
Technical data
Download
Description
| Codice / Code | Connessione / Connection | DN | PN | KVs | Portata min ÷ max/ Min ÷ max flow rarte | Δp |
|---|---|---|---|---|---|---|
| 230V 50/60Hz | ||||||
| EPICV2215 | G1/2"B | 15 | 8* | 1.2 | 0,05 ÷ 0,9 m3/h | 3.4 |
| EPICV2220 | G3/4"B | 20 | 8* | 2.8 | 0,11 ÷ 1,9 m3/h | 3.4 |
| EPICV2225 | G1"B | 25 | 8* | 4.7 | 0,21 ÷ 3,0 m3/h | 3.4 |
| EPICV2232 | G1"1/4B | 32 | 8* | 7.7 | 0,3 ÷ 5,1 m3/h | 3.4 |
| EPICV2240 | G1"1/2B | 40 | 8* | 12.4 | 0,54 ÷ 9,0 m3/h | 3.4 |
| 24V 50/60Hz | ||||||
| EPICV2415 | G1/2"B | 15 | 8* | 1.2 | 0,05 ÷ 0,9 m3/h | 3.4 |
| EPICV2420 | G3/4"B | 20 | 8* | 2.8 | 0,11 ÷ 1,9 m3/h | 3.4 |
| EPICV2425 | G1"B | 25 | 8* | 4.7 | 0,21 ÷ 3,0 m3/h | 3.4 |
| EPICV2432 | G1"1/4B | 32 | 8* | 7.7 | 0,3 ÷ 5,1 m3/h | 3.4 |
| EPICV2440 | G1"1/2B | 40 | 8* | 12.4 | 0,54 ÷ 9,0 m3/h | 3.4 |
| * PN16 version available on request | ||||||
| COIBENTAZIONE / INSULATION | ||||||
| Codice / Code | DN | |||||
| CBCV15 | 15 | |||||
| CBCV20 | 20 | |||||
| CBCV25 | 25 | |||||
| CBCV32 | 32 | |||||
| CBCV40 | 40 |
FEATURES AND FUNCTIONS
• Pressure-independent flow rate control
• 2-way regulating ball valve with equal percentage profile
• Shut-off function
• Flow sensor with Vortex technology
• Integrated control panel and datalogger function
• Analogue signal 0-10V for flow rate setpoint
• Modbus-RTU remote management
