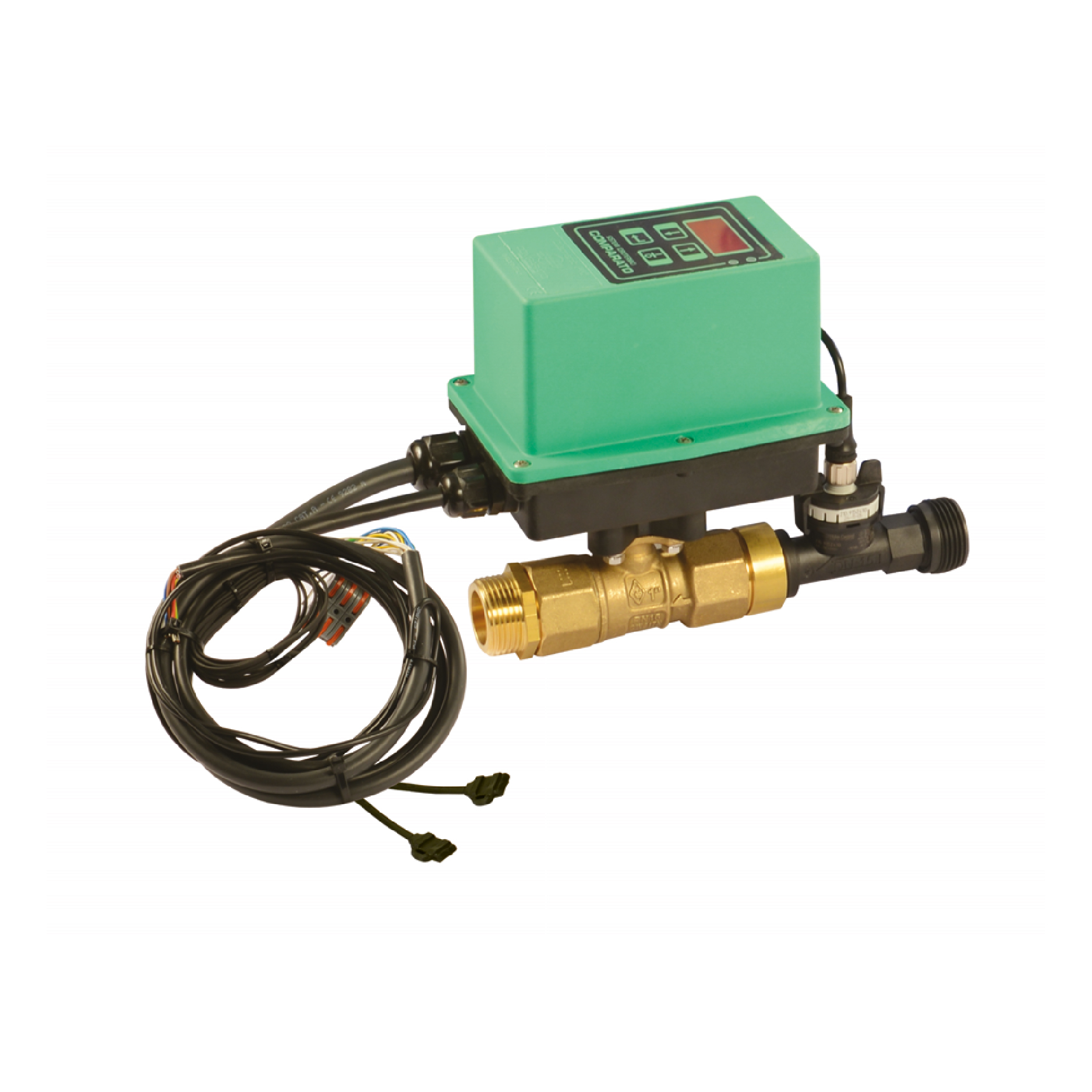

DTCV – electronic differential temperature control

Technical data
Download
Description
Codice /
Code 		Connessione /
Connection		DNPNKVsPortata min ÷ max/
Min ÷ max flow rarte		Δp
230V 50/60Hz
DTCV2215_G1/2"B158*1.20,05 ÷ 0,9 m3/h3.4
DTCV2220_G3/4"B208*2.80,11 ÷ 1,9 m3/h3.4
DTCV2225_G1"B258*4.70,21 ÷ 3,0 m3/h3.4
DTCV2232_G1"1/4B328*7.70,30 ÷ 5,1 m3/h3.4
DTCV2240_G1"1/2B408*12.40,54 ÷ 9,0 m3/h3.4
REGULATOR CALIBRATION
_ _ _ _ _ _ _ _ _ ARadiators
_ _ _ _ _ _ _ _ _ BRadiant panels
_ _ _ _ _ _ _ _ _ CFan coil
* PN16 version available on request
24V 50/60Hz
DTCV2415_G1/2"B158*1.20,05 ÷ 0,9 m3/h3.4
DTCV2420_G3/4"B208*2.80,11 ÷ 1,9 m3/h3.4
DTCV2425_G1"B258*4.70,21 ÷ 3,0 m3/h3.4
DTCV2432_G1"1/4B328*7.70,30 ÷ 5,1 m3/h3.4
DTCV2440_G1"1/2B408*12.40,54 ÷ 9,0 m3/h3.4
REGULATOR CALIBRATION
_ _ _ _ _ _ _ _ _ ARadiators
_ _ _ _ _ _ _ _ _ BRadiant panels
_ _ _ _ _ _ _ _ _ CFan coil
* PN16 version available on request
COIBENTAZIONE / INSULATION
Codice /
Code 		DN
CBCV1515
CBCV2020
CBCV2525
CBCV3232
CBCV4040
TECHNICAL DATASHEET

FEATURES AND FUNCTIONS
• Pressure-independent flow rate control
• Δt ontrol with flow rate limitation
• Δt control with power limitation
• Energy Monitoring
• 2-way regulating ball valve with equal percentage profile
• Shut-off function
• Contact temperature sensors
• Flow sensor with Vortex technology
• Integrated monitoring and control interface
• Analog inputs and digital outputs
• Modbus-RTU remote management
