DIAMIX PR

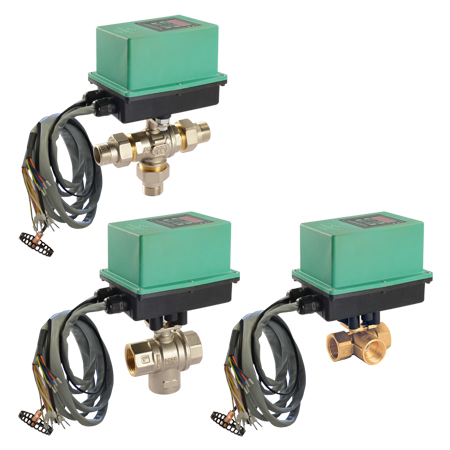

Product variant
Download
Description
Codice/Code Connessione /
Connection
KVsTensione /
P. supply
PNΔPDN
attacco COMPARATO / COMPARATO connection
uscita MISCELATA VERTICALE / VERTICAL MIXED outlet
DIAMIXNBPRG3/4" M/M/M11,5230 V
50/60 Hz
1616
bar
20
DIAMIXNCPRG1" M/M/M18,3230 V
50/60 Hz
1616
bar
25
uscita MISCELATA VERTICALE / VERTICAL MIXED outlet
DIAMIXNFAPRG1/2" F/F/F6230 V
50/60 Hz
2525
bar
15
DIAMIXNFBPRG3/4" F/F/F11,5230 V
50/60 Hz
1616
bar
20
DIAMIXNFCPRG1" F/F/F18,3230 V
50/60 Hz
1616
bar
25
uscita MISCELATA IN LINEA / ALIGNED MIXED outlet
DIAMIXFAPRM *G1/2" F/F/F6 **230 V
50/60 Hz
403,5
bar
15
DIAMIXFBPRM *G3/4" F/F/F8 **230 V
50/60 Hz
403,5
bar
20
DIAMIXFCPRM *G1" F/F/F8 **230 V
50/60 Hz
403,5
bar
25
* solo per applicazioni riscaldamento/raffrescamento
only for heating/cooling application
** valore riferito alla via più sfavorita (L)
the value refers to the most disadvantaged way (L)

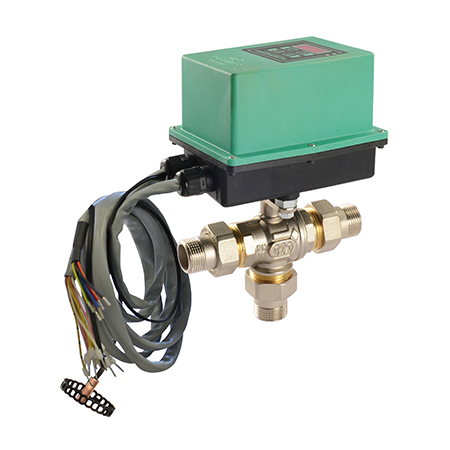

For THERMAL REGULATION in UNDERFLOOR heating / cooling system

Mixing thermoregulating actuator with electronics onboard

Class protection IP67

Semiconductor temperature sensor

3-way BRASS ball valve, MMM with caps and tangs PN16 or FFF vertical/horizontal, full bore
