UNIVERSAL PRO motorised valve – 3 way horizontal FFF AISI 316

Technical data
Download
Description
Codice /
Code
VMisura /
Size
DNPNTempi di manovra /
Operating times
SFERA "T""T"-PORT
UY222AC6B5230 V
50 Hz
1"256455 sec (90°)
UY222AD6B5230 V
50 Hz
1"1/4326455 sec (90°)
SFERA "L""L"-PORT
UY222AC5B5230 V
50 Hz
1"256455 sec (90°)
UY222AD5B5230 V
50 Hz
1"1/4326455 sec (90°)
SFERA "T""T"-PORT
UY242AC6B524 V
50 Hz
1"256455 sec (90°)
UY242AD6B524 V
50 Hz
1"1/4326455 sec (90°)
SFERA "L""L"-PORT
UY242AC5B524 V
50 Hz
1"256455 sec (90°)
UY242AD5B524 V
50 Hz
1"1/4326455 sec (90°)

INDUSTRIAL USE

ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection

Class protection: IP67

Operating time: 55 sec for 90° rotation – 40Nm

Protected type, manual emergency override, 2 extra micro switches

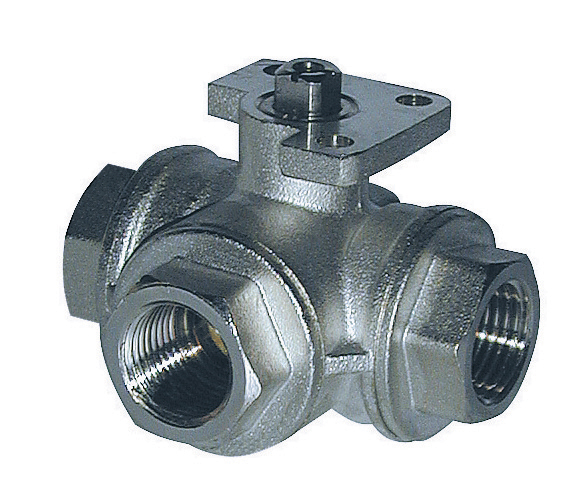

3-way FFF AISI 316 horizontal ball valve, reduced passage PN64
