ACCESSORIES UNIVERSAL PRO: VERSION WITHOUT EMERGENCY MANUAL OVERRIDE
Technical data
Download
| Accessories description | Add to the code of basic model actuator |
|---|---|
| Version without emergency manual override | SA |

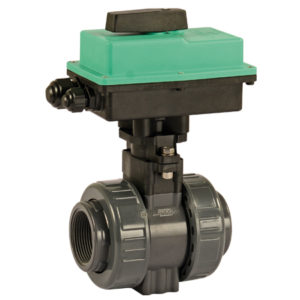

UNIVERSAL PRO actuator ISO 5211 connection
Technical data
Download
Description
Use
| Codice / Code | Per corpo valvola / For ball valve | V | Frequenza / Frequency | Coppia / Torque | Tempi di manovra / Operating times | Angolo ° / Angle ° |
|---|---|---|---|---|---|---|
| UY2222P | 2 - 3 VIE / WAY | 230V | 50 Hz | 40 Nm | 55 sec | 90° |
| UY2122P | 2 - 3 VIE / WAY | 110V | 50 Hz | 40 Nm | 55 sec | 90° |
| UY2422P | 2 - 3 VIE / WAY | 24V | 50 Hz | 40 Nm | 55 sec | 90° |
| UY3222P | Deviatore / Diverter | 230V | 50 Hz | 40 Nm | 110 sec | 180° |
| UY3122P | Deviatore / Diverter | 110V | 50 Hz | 40 Nm | 110 sec | 180° |
| UY3422P | Deviatore / Diverter | 24V | 50 Hz | 40 Nm | 110 sec | 180° |
INDUSTRIAL USE
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Class protection: IP67
Operating time: 55 sec for 90° rotation – 40Nm
Protected type, manual emergency override, 2 extra micro switches
ACCESSORIES UNIVERSAL PRO: ANTI-CONDENSING HEATER
Technical data
Download
| Accessories Description | Add to the code of basic model actuator |
|---|---|
| Anti-Condensing heater | R |
ACCESSORIES UNIVERSAL PRO: FROM 4 TO 320 SERCONDS VERSION
Technical data
Download
| Accessories Description | Add to the code of basic model actuator |
|---|---|
| 32 second version | T |
| 14 second version | S |
ACCESSORIES UNIVERSAL PRO: SPACER FOR INSULATION
Technical data
Download
| Accessories Description | Add to the code of basic model actuator |
|---|---|
| Spacer for insulation | D1 |
ACCESSORIES UNIVERSAL PRO: 60 HZ VERSION
Technical data
Download
| Accessories Description | Add to the code of basic model actuator | Note |
|---|---|---|
| 60 Hz version (230V-24V) | 6 | for 55 sec version only |
