ECOSAN PDC
| Product Type | Model |
|---|---|
| Hydraulic interface unit for heating and DHW production with heat exchanger for plants with heat pump | Ecosan PDC |
| COMPONENTS | |
| Braze welded plate exchanger | |
| PWM modulating circulator | |
| DHW temperature probe | |
| DHW flow meter | |
| Non-return valve | |
| Electronic control unit with control panel | |
| Recirculation pump | Optional |
| Primary mixer | Optional |
| White cover | Optional |
| Primary return diverter | Optional |
| Heat meter ready | Optional |
Hydraulic interface unit for domestic hot water instantaneous production with heat plate exchanger for plants with heat pump:
• Puffer temperature ≤ 50°C
• Nominal power 35 kW or 50 kW
• Electronic regulation with PWM modulation of the pump
• Compact wall mounting
• Remote management with Modbus-RTU protocol
DIATECH PDC
| Product Type | Model |
|---|---|
| Hydraulic interface unit for heating and DHW production with increased heat exchanger for systems with heat pump | Diatech PDC |
| COMPONENTS | |
| Strainer | |
| Manual interception valves (version with template box) | |
| DHW temperature probe | |
| Flowmeter | |
| Flow static limiter | |
| Heat exchanger | |
| Diamant 2000 2-way modulating motorised valve on sanitary circuit | |
| Sintesi 2-way ON/OFF motorised valve on primary circuit | |
| Electronics management box | |
| Energy meter, M-Bus reading / Ultrasonic energy meter | |
| Sanitary water meter, M-Bus reading | |
| Treated and/or pre-heated sanitary water meter, M-Bus reading | Optional |
| Template box (recessed installation) | Optional |
| White casing (wall hanging) | Optional |
| Plant balancing with static balancing valve / Plant balancing with DPCV / Plant balancing with Modflow - electronic flow control | Optional |
| Non-return valve | Optional |
| System start-up and technical support | Optional |
Direct energy metering
Centralised heating plant management
Plated heat exchanger for DHW production
Hot and cold sanitary water lines
For heating plant with heat pump

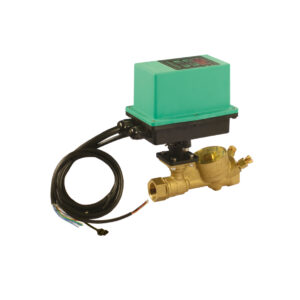

Clima diverting motorised valve – MMM connections
| Codice / Code | Tensione / P. supply | Connessione / Connection | DN | KVs | PN | ΔP |
|---|---|---|---|---|---|---|
| CLIMAPCDCB | 230 V 50/60 Hz | 3/4" | 20 | 11,5 | 16 | 16 bar |
| CLIMAPCDCC | 230 V 50/60 Hz | 1" | 25 | 18,3 | 16 | 16 bar |
HEATING PLANTS WITH HEAT PUMP
Diverting valve for automatic switching between heat pump and boiler:
- Automatic switching between HP and boiler according to outdoor temperature
- Control of the diverting valve to the DHW heater
- Data storage of the working time of HP and boiler
IP65 class protection
3-way brass ball valve, full bore, MMM PN 16
Modbus-RTU protocol for remote management
ECOSAN PDC L
| Codice / Code | Descrizione/ Description |
|---|---|
| ECOSL100 | potenza nominale produzione istantanea ACS 100 kW/ 100 kW DHW instantaneous production nominal power |
| ECOSL150 | potenza nominale produzione istantanea ACS 150 kW/ 150 kW DHW instantaneous production nominal power |
Hydraulic interface unit for domestic hot water instantaneous production with heat plate exchanger for plants with heat pump:
• Puffer temperature ≤ 50°C
• Nominal power 100 kW or 150 kW
• Electronic mixer for DHW temperature control
• Domestic recirculation line with programmable
anti-legionella thermal disinfection
• Recirculation return temperature control
with PWM modulation of the pump
• Bedplate installation
• Comparato’s LegioTool software for communication
between PC and mixing valve with data downloading
• Remote management with Modbus-RTU protocol
Clima diverting motorised valve – FFF connections
| Codice / Code | Tensione / P. supply | Connessione / Connection | DN | KVs | PN | ΔP |
|---|---|---|---|---|---|---|
| CLIMAPCDFA | 230 V 50/60 Hz | 1/2" | 15 | 6 | 25 | 25 bar |
| CLIMAPCDFB | 230 V 50/60 Hz | 3/4" | 20 | 11,5 | 16 | 16 bar |
| CLIMAPCDFC | 230 V 50/60 Hz | 1" | 25 | 18,3 | 16 | 16 bar |
| CLIMAPCCFD | 230 V 50/60 Hz | 1"1/4 | 32 | 27,2 | 10 | 10 bar |
| CLIMAPCCFE | 230 V 50/60 Hz | 1"1/2 | 40 | 47,3 | 10 | 6 bar |
| CLIMAPCCFF | 230 V 50/60 Hz | 2" | 50 | 73 | 10 | 4 bar |
HEATING PLANTS WITH HEAT PUMP
Diverting valve for automatic switching between heat pump and boiler:
- Automatic switching between HP and boiler according to outdoor temperature
- Control of the diverting valve to the DHW heater
- Data storage of the working time of HP and boiler
IP65 class protection
3-way brass ball valve, full bore, FFF PN 16
Modbus-RTU protocol for remote management
