ECOPOOL
| Codice / Code | Alimentazione / Power supply | Descrizione / Description |
|---|---|---|
| PK2050 | 230V AC | for pools up to 50 m³ |
| PK2100 | 230V AC | for pools from 50 to 100 m³ |
| PK2200 | 230V AC | for pools from 100 to 200 m³ |
Pool temperature regulation:
• Electronic regulation of the supply temperature to the pool
• Automatic switching between two different energy sources based on the available temperature
• Remote control capability via RS485 serial port with Modbus-RTU protocol
SEP KIT
| Codice / Code | Potenza nominale caldaia / Boiler nominal power | Potenza nominale pompa di calore / Heat pump nominal power |
|---|---|---|
| ESEP2614 | 26 kW | 14 kW |
Hydraulic unit for separation and primary circuit prevention
With plate heat exchanger
ECOKAM T
| Codice / Code | Potenza caldaia a gas / Max source power | Circolatori / Pumps |
|---|---|---|
| ES1P24E | 24 kW | 1 |
| ES1P35E | 35 kW | 1 |
Heating interface unit
Dedicated to hot water production for heating
Hydraulical separation of the fireplace circuit (without expansion vessel) and the boiler circuit (with expansion vessel)
With plated heat exchanger for heating dimensioned according to the boiler’s power
For connection to distribution manifold
ECOKAM RC
| Codice/Code | Potenza al focolare max / Max source power | Circolatori / Pumps |
|---|---|---|
| ES2P18RCN | 20 kW | 2 |
| ES2P35RCN | 35 kW | 2 |
| ES1P18RCIN | 20 kW | 1 |
| ES1P35RCIN | 35 kW | 1 |

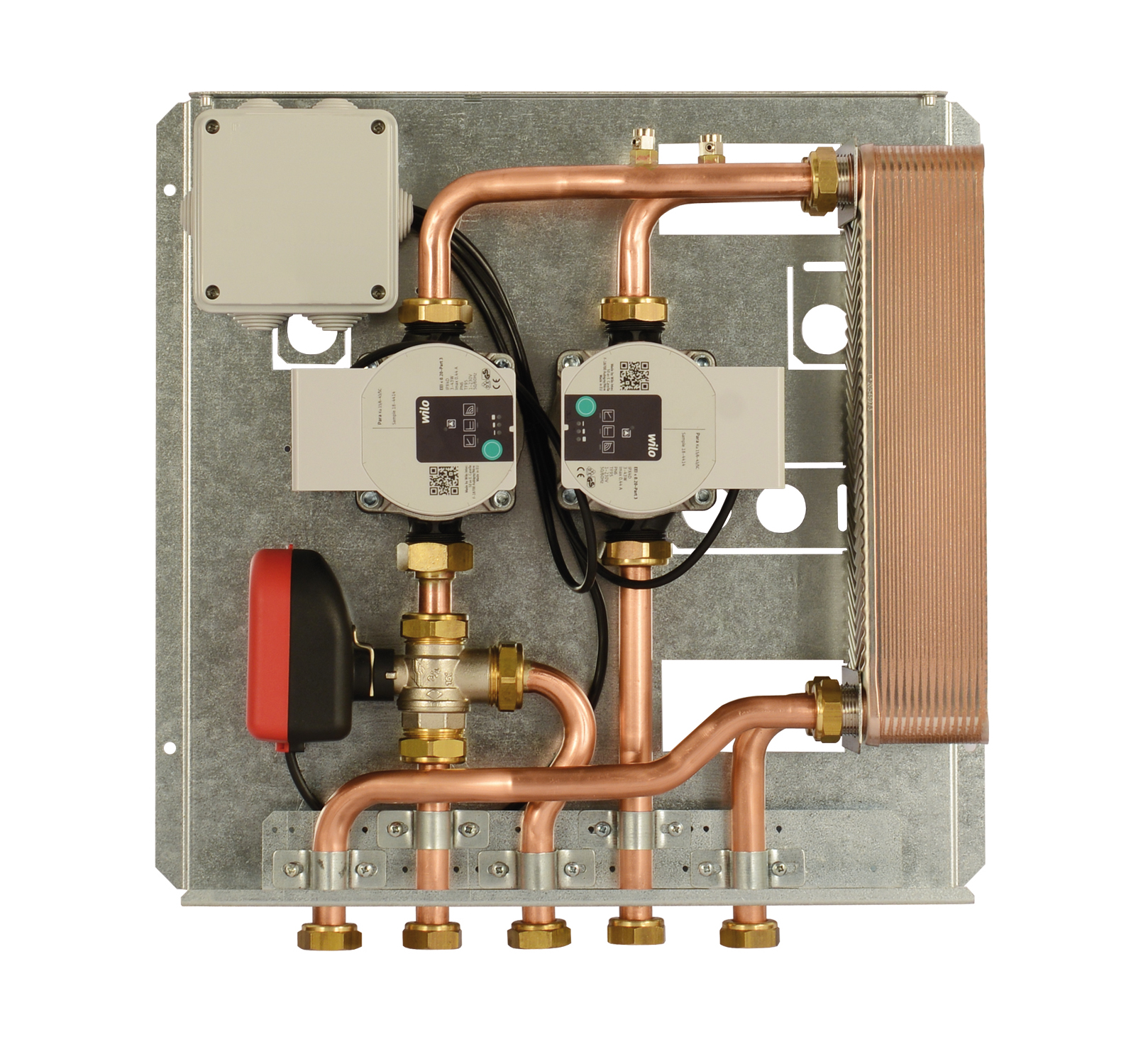

Heating interface unit
Dedicated to hot water production for heating
Hydraulical separation of the fireplace circuit (without expansion vessel) and the boiler circuit (with expansion vessel)
With plated heat exchanger for heating
For connection to distribution manifold
ECOKAM R
| Codice / Code | Potenza al focolare max / Max source power | Circolatori / Pumps |
|---|---|---|
| ES2P18N | 20 kW | 2 |
| ES2P35N | 35 kW | 2 |
| ES1P18IN | 20 kW | 1 |
| ES1P35IN | 35 kW | 1 |
Heating interface unit
Dedicated to hot water production for heating
Hydraulical separation of the fireplace circuit (without expansion vessel) and the boiler circuit (with expansion vessel)
With plated heat exchanger for heating
With motorised valve for fluid deviation
ECOKAM S
| Codice / Code | Circolatori / Pumps |
|---|---|
| ES0P18SN | - |
| ES1P18SN | 1 |

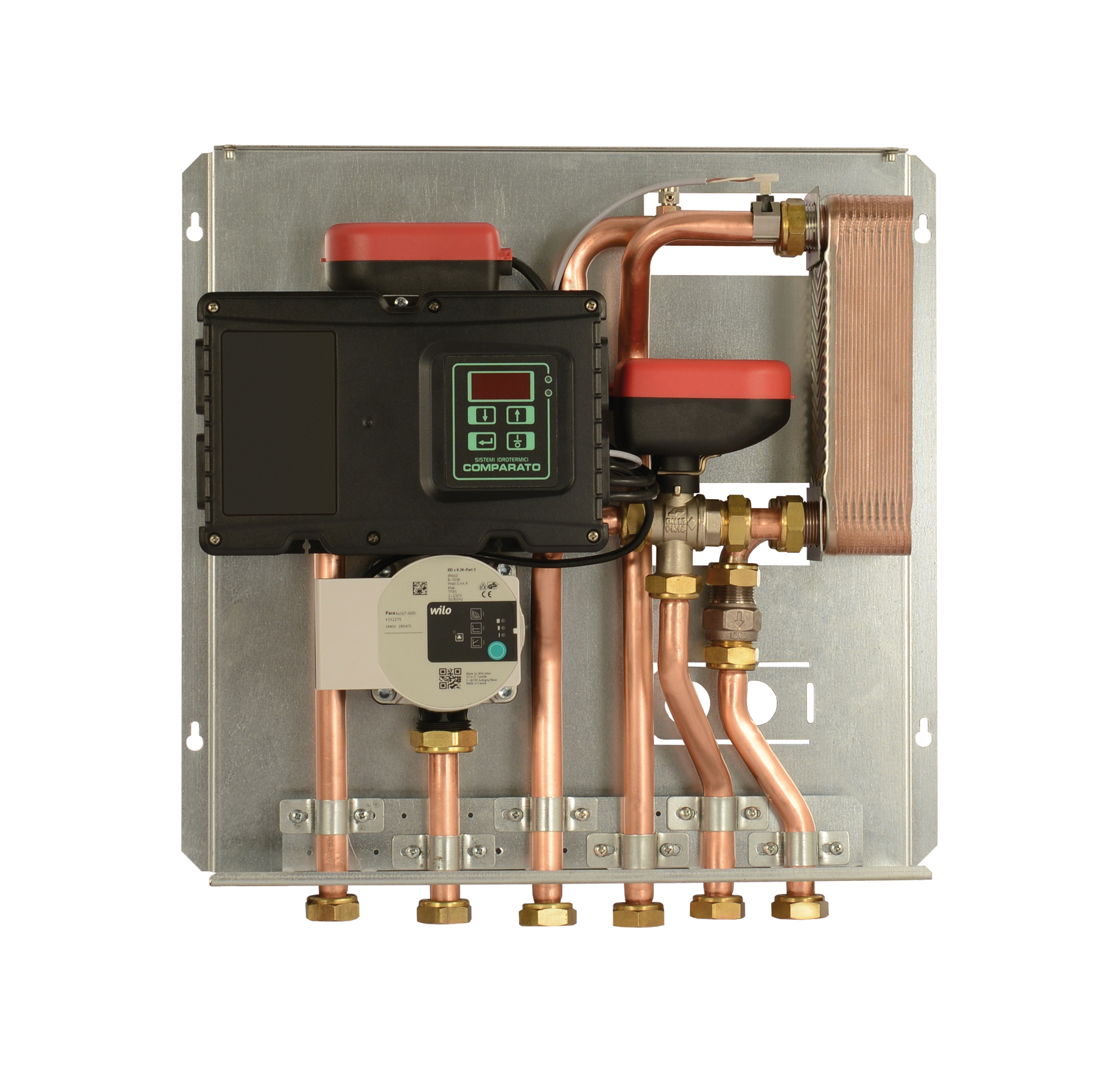

Interface unit for domestic water
Dedicated to the production of ACS
With plate heat exchanger for ACS produzoine
With modulating electronic regulator
ECOKAM RSC
| Codice / Code | Potenza al focolare max / Max source power | Circolatori / Pumps |
|---|---|---|
| ES2P18RSC | 20 kW | 2 |
| ES2P35RSC | 35 kW | 2 |
| ES1P18RSCI | 20 kW | 1 |
| ES1P35RSCI | 35 kW | 1 |
Heating and domestic water interface unit
Dedicated to hot water production for heating and DHW production
Hydraulical separation of the fireplace circuit (without expansion vessel) and the boiler circuit (with expansion vessel)
With plated heat exchanger for heating and DHW production
ECOKAM RS
| Codice / Code | Potenza al focolare max / Max source power | Circolatori / Pumps |
|---|---|---|
| ES2P18RS | 20 kW | 2 |
| ES2P35RS | 35 kW | 2 |
| ES1P18RSI | 20 kW | 1 |
| ES1P35RSI | 35 kW | 1 |
Heating and domestic water interface unit
Dedicated to hot water production for heating and DHW production
Hydraulical separation of the fireplace circuit (without expansion vessel) and the boiler circuit (with expansion vessel)
With plated heat exchanger for heating and DHW production
The electronics controls the DHW temperature through a modulating
ECOSAN
| Codice / Code | Potenza al focolare max / Max source power | Circolatori / Pumps |
|---|---|---|
| ECOSP35 | 35 kW | 1 |
| ECOSP50 | 50 kW | 1 |
| ECOSP60 | 60 kW | 1 |
| ECOSI35 | 35 kW | predisposizione / ready for pump |
| ECOSI50 | 50 kW | predisposizione / ready for pump |
Interface unit for DHW instant production
With plated heat exchanger for DHW production
With modulating electronic regulator
ECOSAN PDC
| Product Type | Model |
|---|---|
| Hydraulic interface unit for heating and DHW production with heat exchanger for plants with heat pump | Ecosan PDC |
| COMPONENTS | |
| Braze welded plate exchanger | |
| PWM modulating circulator | |
| DHW temperature probe | |
| DHW flow meter | |
| Non-return valve | |
| Electronic control unit with control panel | |
| Recirculation pump | Optional |
| Primary mixer | Optional |
| White cover | Optional |
| Primary return diverter | Optional |
| Heat meter ready | Optional |
Hydraulic interface unit for domestic hot water instantaneous production with heat plate exchanger for plants with heat pump:
• Puffer temperature ≤ 50°C
• Nominal power 35 kW or 50 kW
• Electronic regulation with PWM modulation of the pump
• Compact wall mounting
• Remote management with Modbus-RTU protocol
ECOSAN PDC L
| Codice / Code | Descrizione/ Description |
|---|---|
| ECOSL100 | potenza nominale produzione istantanea ACS 100 kW/ 100 kW DHW instantaneous production nominal power |
| ECOSL150 | potenza nominale produzione istantanea ACS 150 kW/ 150 kW DHW instantaneous production nominal power |
Hydraulic interface unit for domestic hot water instantaneous production with heat plate exchanger for plants with heat pump:
• Puffer temperature ≤ 50°C
• Nominal power 100 kW or 150 kW
• Electronic mixer for DHW temperature control
• Domestic recirculation line with programmable
anti-legionella thermal disinfection
• Recirculation return temperature control
with PWM modulation of the pump
• Bedplate installation
• Comparato’s LegioTool software for communication
between PC and mixing valve with data downloading
• Remote management with Modbus-RTU protocol
