DIAMIX

Product variant
Download
Description
Codice /
Code
Connessione /
Connection
KVsTensione /
P. supply
PNΔPDN
uscita MISCELATA VERTICALE /
VERTICAL MIXED outlet
DIAMIXNBG3/4" M/M/M11,5230 V
50/60 Hz
1616
bar
20
DIAMIXNCG1"M/M/M18,3230 V
50/60 Hz
1616
bar
25
DIAMIXNFAG1/2" F/F/F6230 V
50/60 Hz
2525
bar
15
DIAMIXNFBG3/4" F/F/F11,5230 V
50/60 Hz
1616
bar
20
DIAMIXNFCG1" F/F/F18,3230 V
50/60 Hz
1616
bar
25
uscita MISCELATA IN LINEA /
ALIGNED MIXED outlet
DIAMIXNFAM *G1/2" F/F/F6 **230 V
50/60 Hz
403,5
bar
15
DIAMIXNFBM *G3/4" F/F/F8 **230 V
50/60 Hz
403,5
bar
20
DIAMIXNFCM *G1" F/F/F8 **230 V
50/60 Hz
403,5
bar
25
* solo per riscaldamento/raffrescamento
only for heating/cooling application
** valore riferito alla via più sfavorita
referred to the most disadvantaged way

DOMESTIC HOT WATER / UNDERFLOOR HEATING / REGULATION IN GENERAL

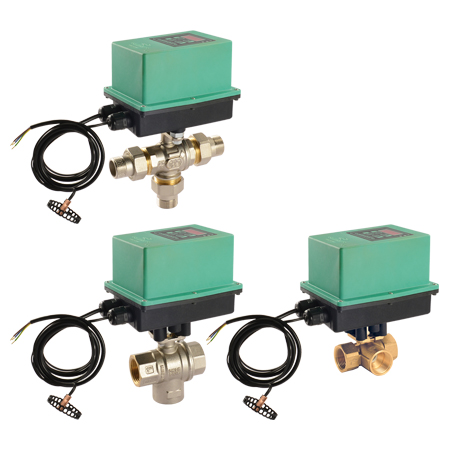

Mixing thermoregulating actuator with electronics onboard

Class protection IP67

Semiconductor temperature sensor

3-way BRASS ball valve, MMM with caps and tangs PN16 or FFF vertical/horizontal, full bore
